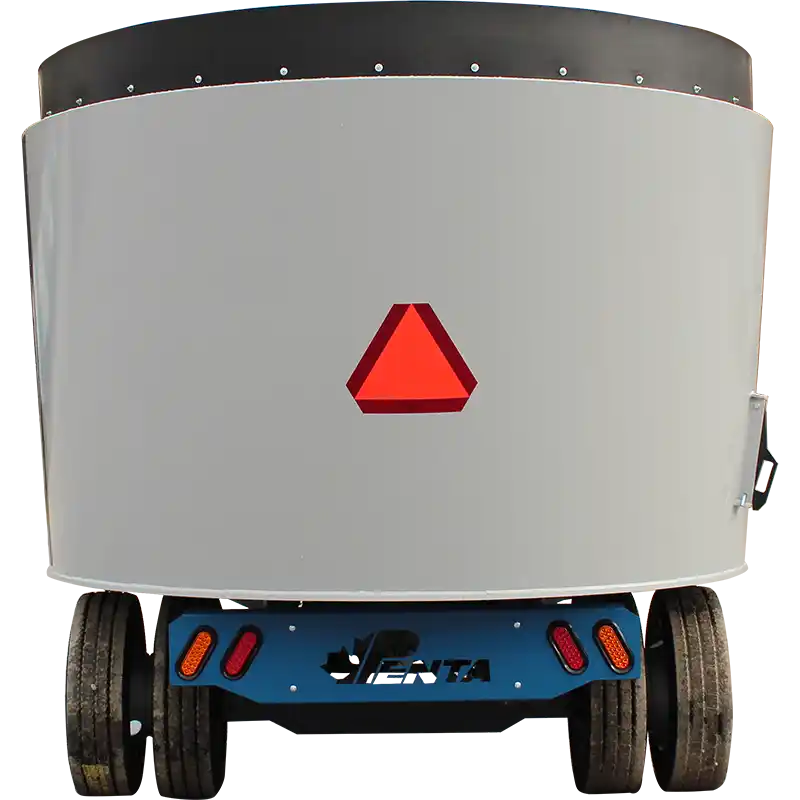

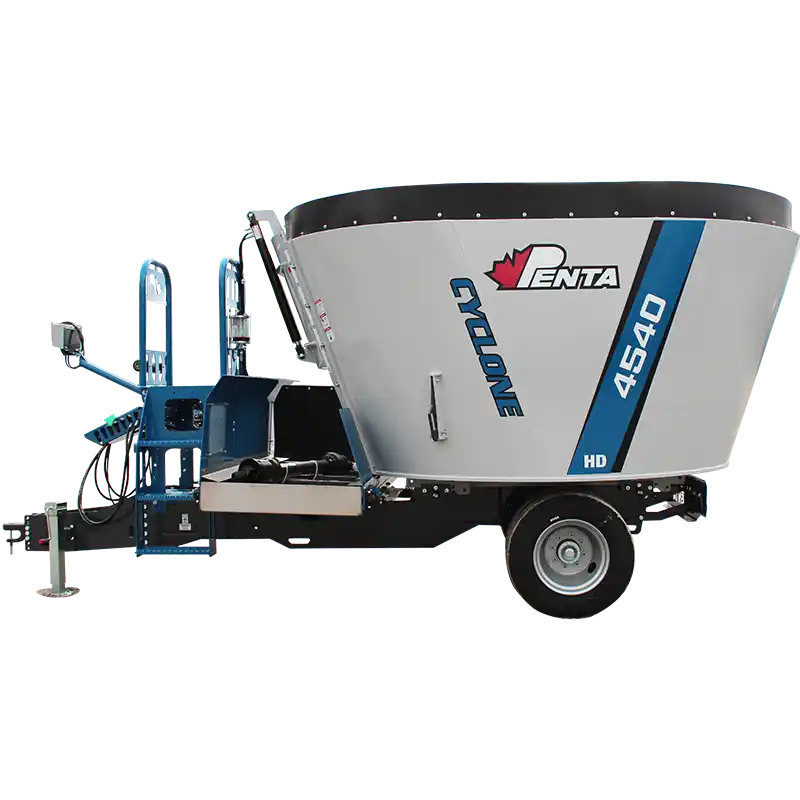

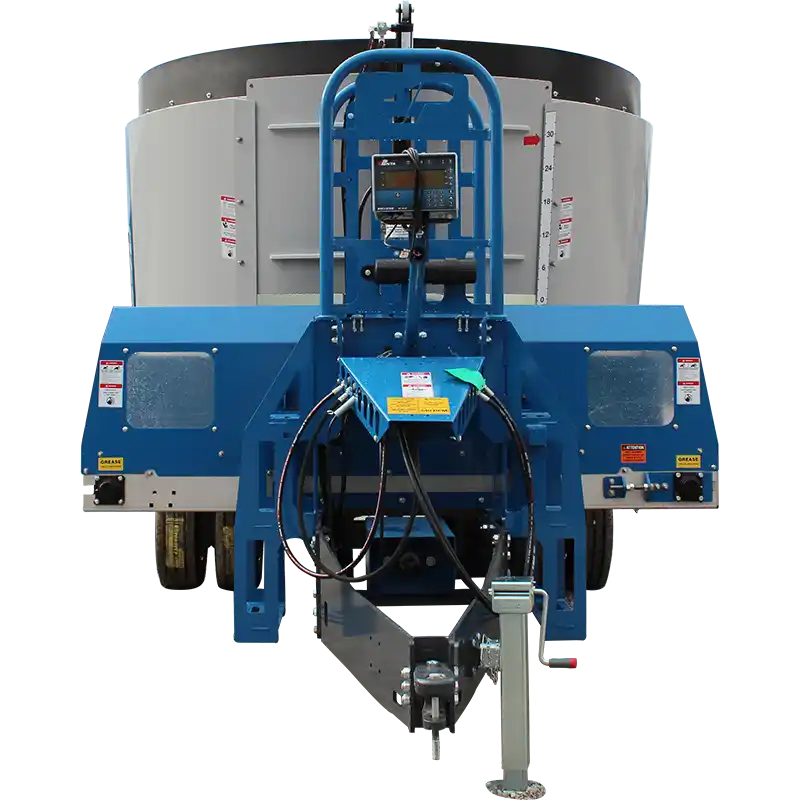

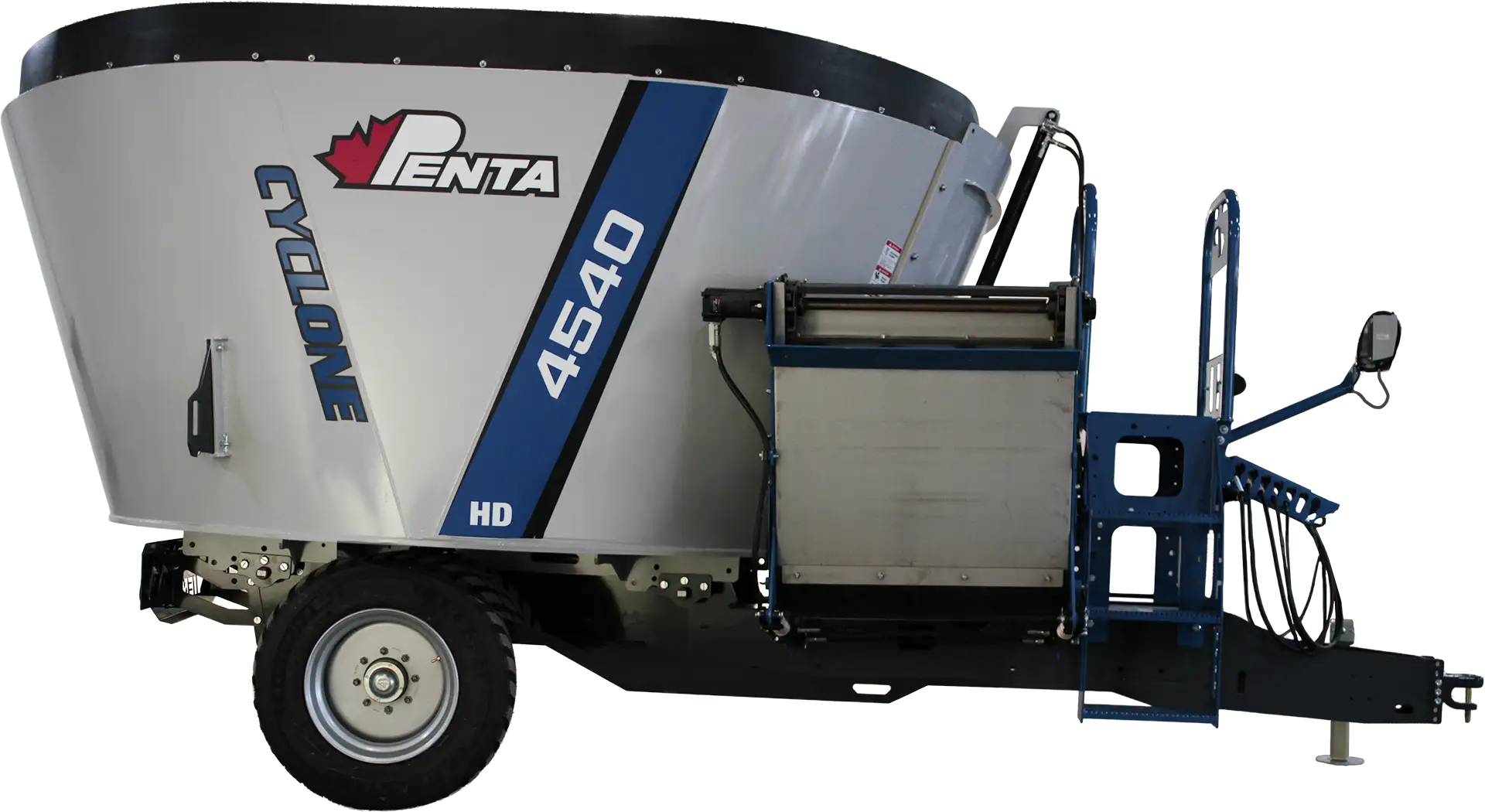

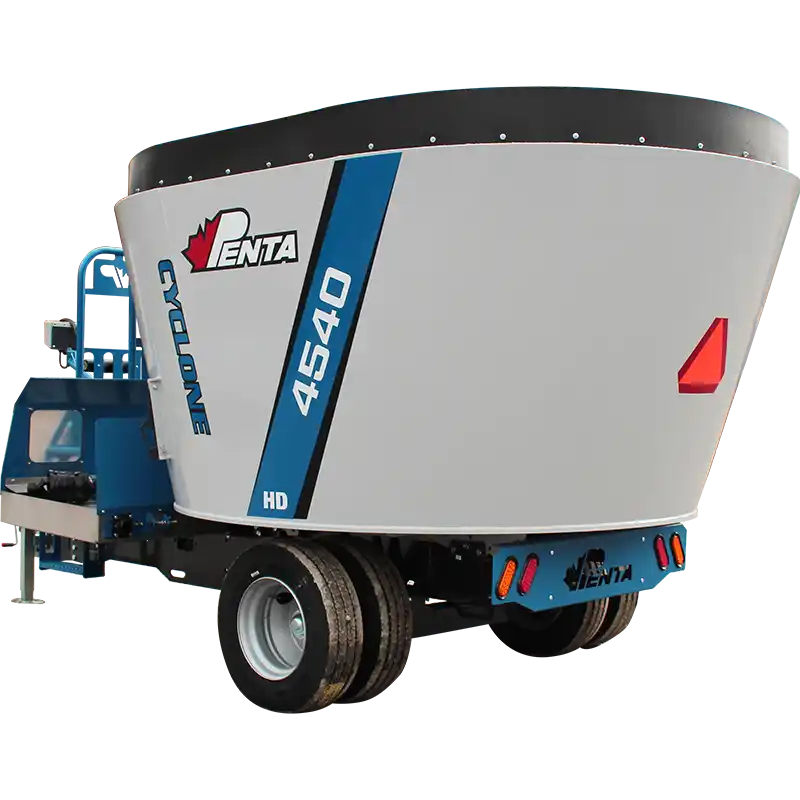

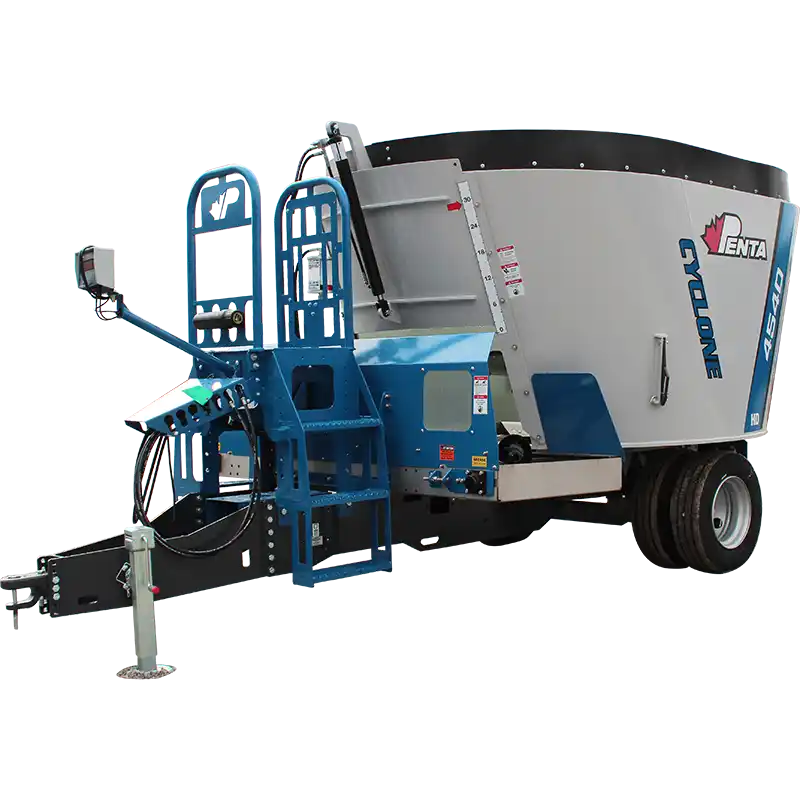

4540 Mixer
The Penta 4540 is a heavy-duty single-auger trailer mixer with a low height for skid steer loading. Ideal for high fibre diets, it can process a 4×5 bale before blending with other ingredients. Optimal for feeding up to 50 beef cattle or 75 dairy cows per load. At 437 cu ft capacity, rugged construction, and the patented Cyclone Auger, it delivers fast, consistent mixing day in and day out.
Specifications
- CAPACITY
- 9″ Rubber Ext.
- 437 ft3
- 12.4 m3
- CAPACITY
- 16″ Rubber Ext.
- 485 ft3
- 13.7 m3
- WIDTH
- 104 in
- 264 cm
- LENGTH
- 234 in
- 594 cm
- HEIGHT
- Standard Tires
- 103 in
- 262 cm
- MIN HP
- 85 hp
- EMPTY WEIGHT
- 10,480 lbs
Additional Info
Built for smaller operations
- Farm-Proven Durability — Designed for long hours and extreme field conditions.
- Patented Cyclone Auger — Accelerates forage circulation faster, and more consistent mixing.
- Heavy-Duty Construction — Rugged frame, tub, and augers designed for durability and optimal performance under pressure.
- Planetary Gear Drive — Planetary gearboxes deliver reliable power and cleaner operation.
- Efficient Unloading — Optional flip‑up or dual conveyors, driven by tough C188 chain and hydraulic motors.
Read Our 40 Series Brochure
