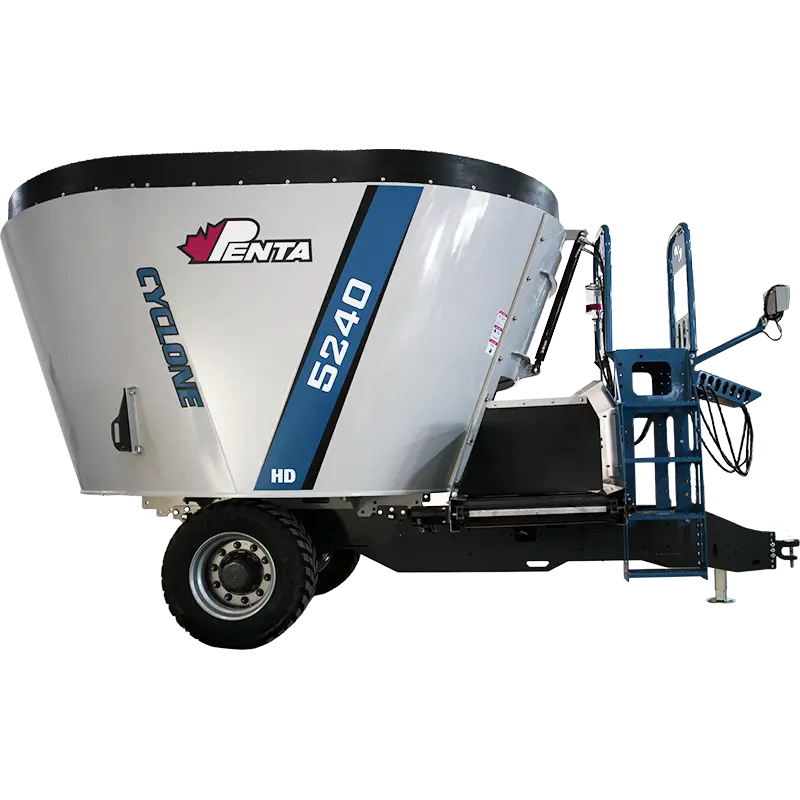

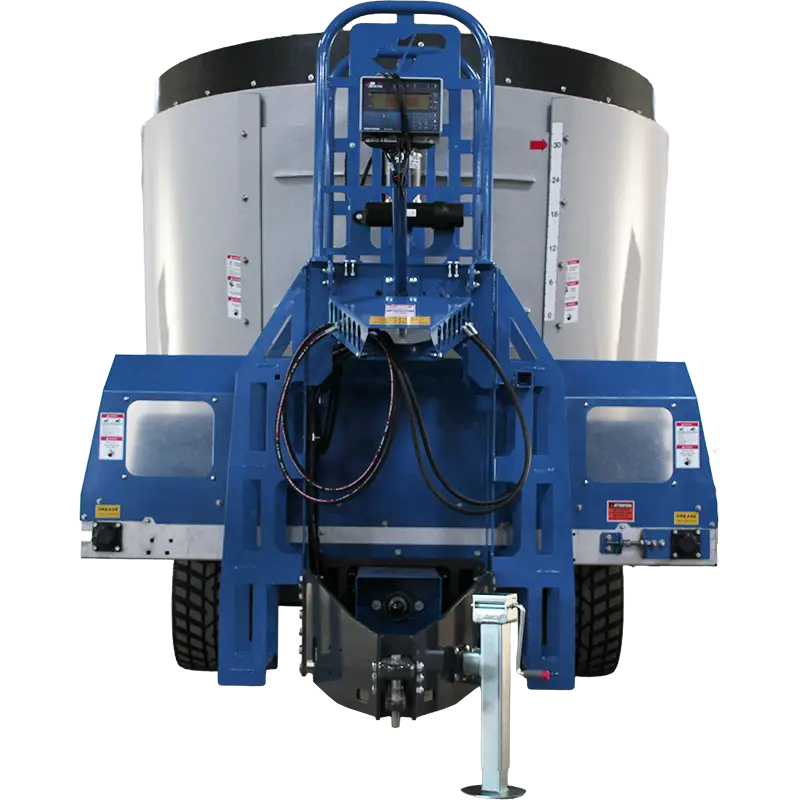

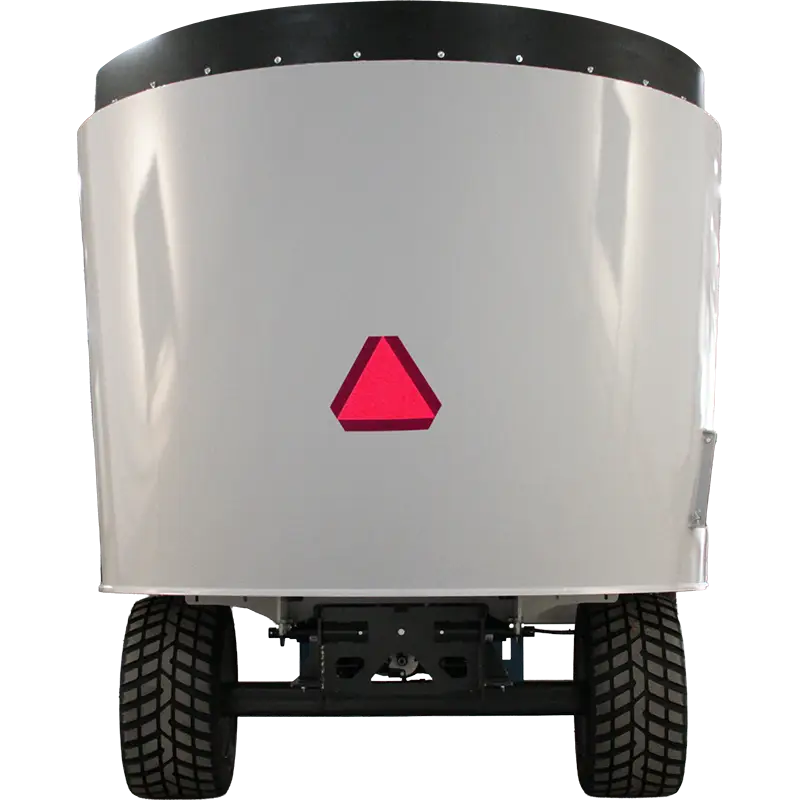

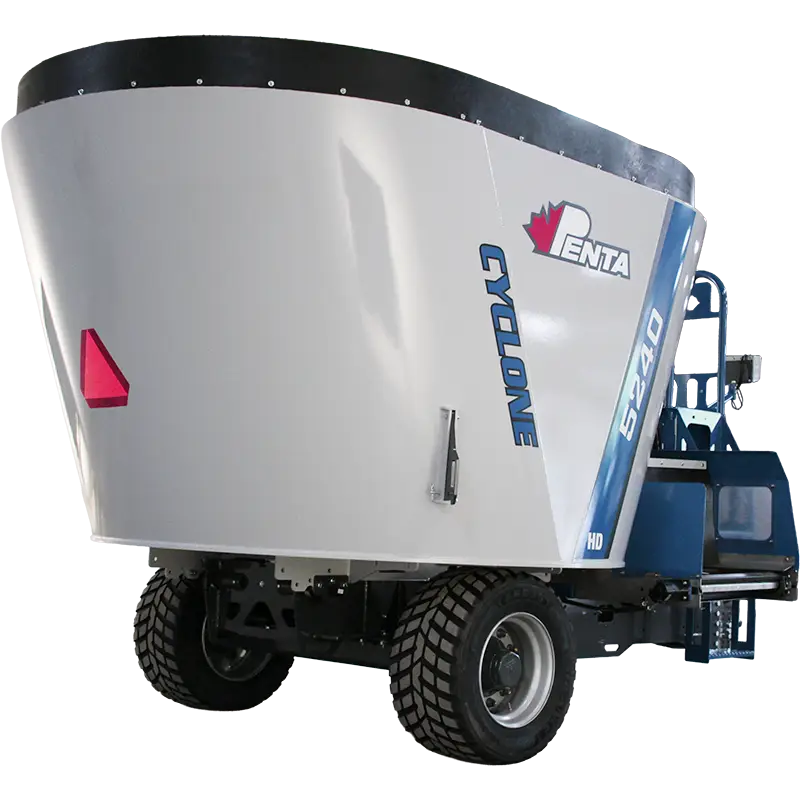

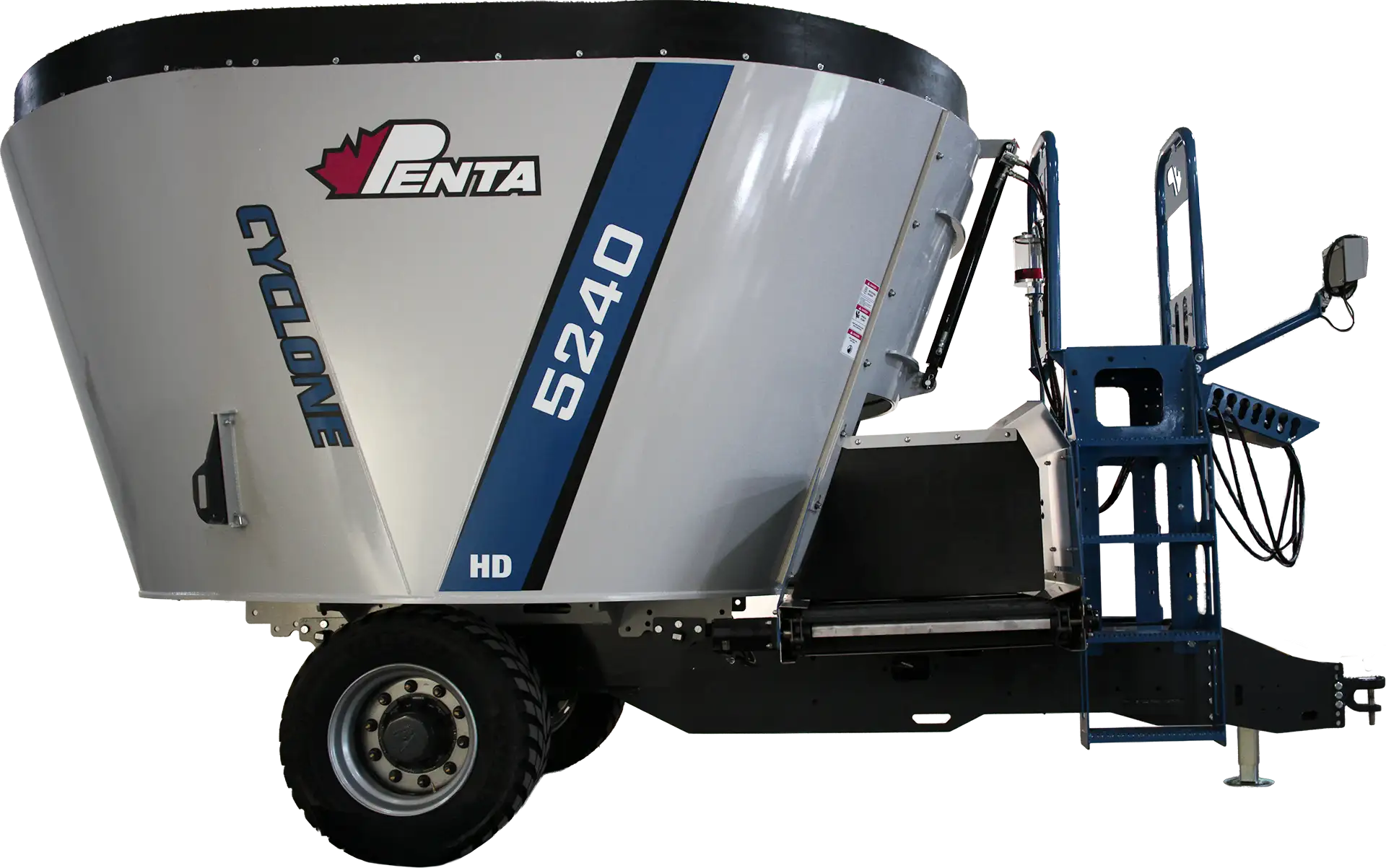

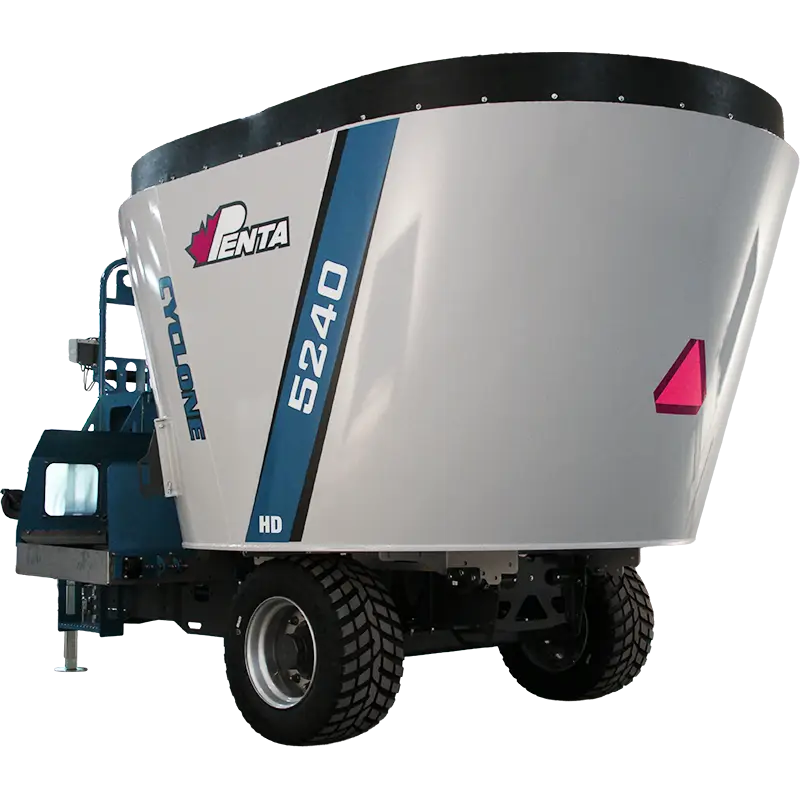

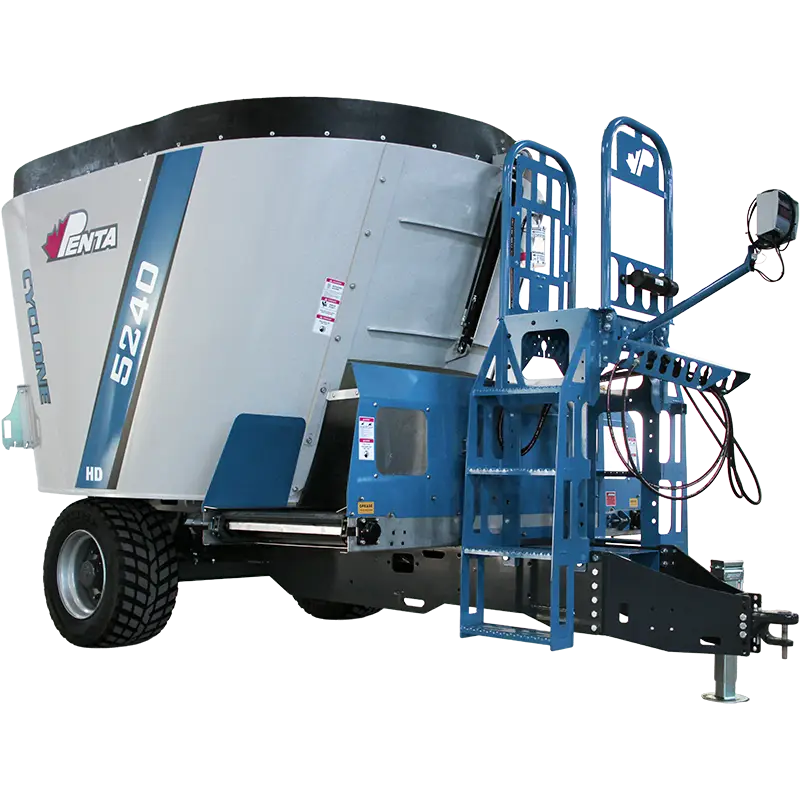

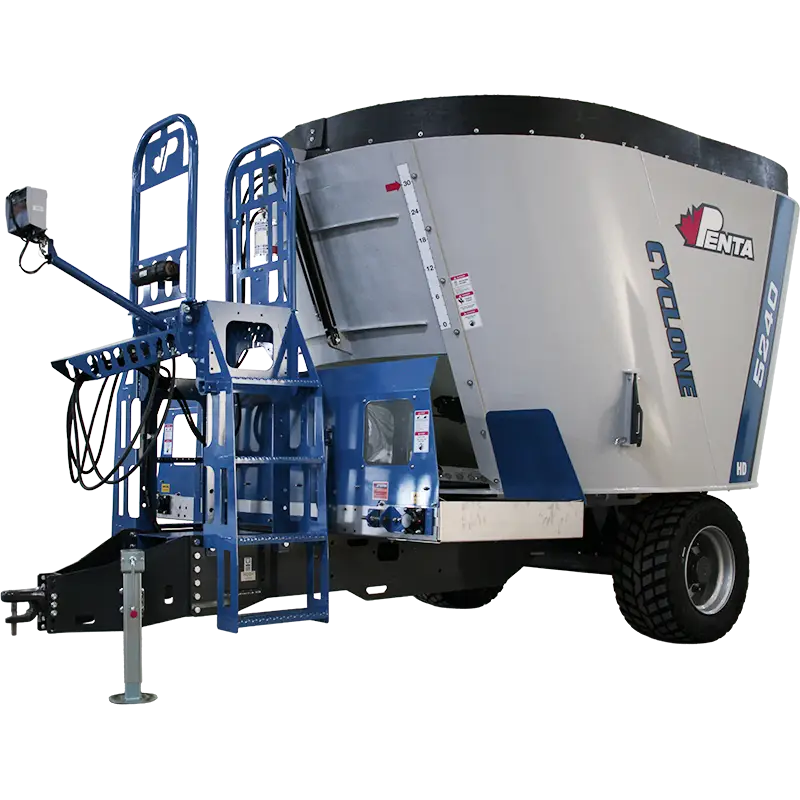

5240 Mixer
The Penta 5240 is a robust single-auger trailer mixer built for high-capacity feeding. Boosting a 523 cu ft tub, rugged construction, and the patented Cyclone Auger for fast, even mixes on demanding farms.
Specifications
- CAPACITY
- 9″ Rubber Ext.
- 523 ft3
- 14.8 m3
- CAPACITY
- 16″ Rubber Ext.
- 574 ft3
- 16.3 m3
- WIDTH
- 104 in
- 264 cm
- LENGTH
- 237 in
- 602 cm
- HEIGHT
- Standard Tires
- 117 in
- 297 cm
- MIN HP
- 110 hp
- EMPTY WEIGHT
- 11,450 lbs
Additional Info
Increased volume, robust loading dimensions
- Farm-Proven Durability — Designed for long hours and extreme field conditions.
- Patented Cyclone Auger — Accelerates forage circulation with faster, more consistent mixing via drop-through design.
- Heavy-Duty Construction — Built with rugged steel tubing: ¾″ cold-pressed flighting and thick structural frames.
- Planetary Gear Drive — Corner planetary gearboxes (3‑year warranty) deliver reliable power and cleaner operation.
- Efficient Unloading — Optional flip‑up or dual conveyors, driven by tough C188 chain and hydraulic motors.
