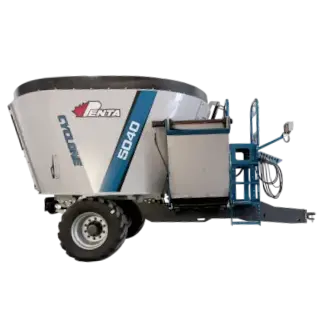

5040 Mixer
The Penta 5040 is a heavy-duty single-auger trailer mixer built for larger operations. It boasts a 486 cu ft capacity, rugged construction, and the patented Cyclone Auger, which delivers fast, consistent mixing day in and day out.
Specifications
- CAPACITY
- 9″ Rubber Ext.
- 418 ft3
- 71.8 m3
- CAPACITY
- 16″ Rubber Ext.
- 466 ft3
- 13.2 m3
- WIDTH
- 105 in
- 267 cm
- LENGTH
- 233 in
- 592 cm
- HEIGHT
- Standard Tires
- 99 in
- 251 cm
- MIN HP
- 55 hp
- EMPTY WEIGHT
- 10,360 lbs
Additional Info
Built for smaller operations
- Farm-Proven Durability — Designed for long hours and extreme field conditions.
- Patented Cyclone Auger — Accelerates forage circulation with faster, more consistent mixing via drop-through design.
- Heavy-Duty Construction — Built with rugged steel tubing: ¾″ cold-pressed flighting and thick structural frames.
- Planetary Gear Drive — Corner planetary gearboxes (3‑year warranty) deliver reliable power and cleaner operation.
- Efficient Unloading — Optional flip‑up or dual conveyors, driven by tough C188 chain and hydraulic motors.
Read Our 40 Series Brochure
